OLISEW OLD-7705 Hot air seam sealing machine
product unavailable
Maszynami do szycia zajmujemy się od 2007 roku.
Jeśli potrzebujesz fachowej porady - Zadzwoń lub napisz, a ja doradzę Ci, co jest najlepsze dla Twoich potrzeb.
Description

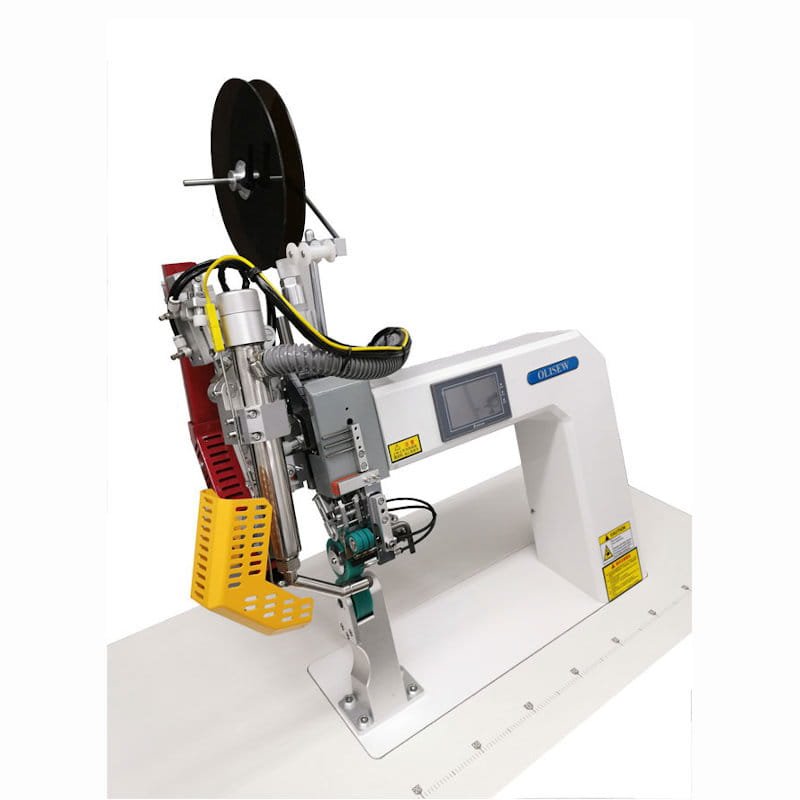

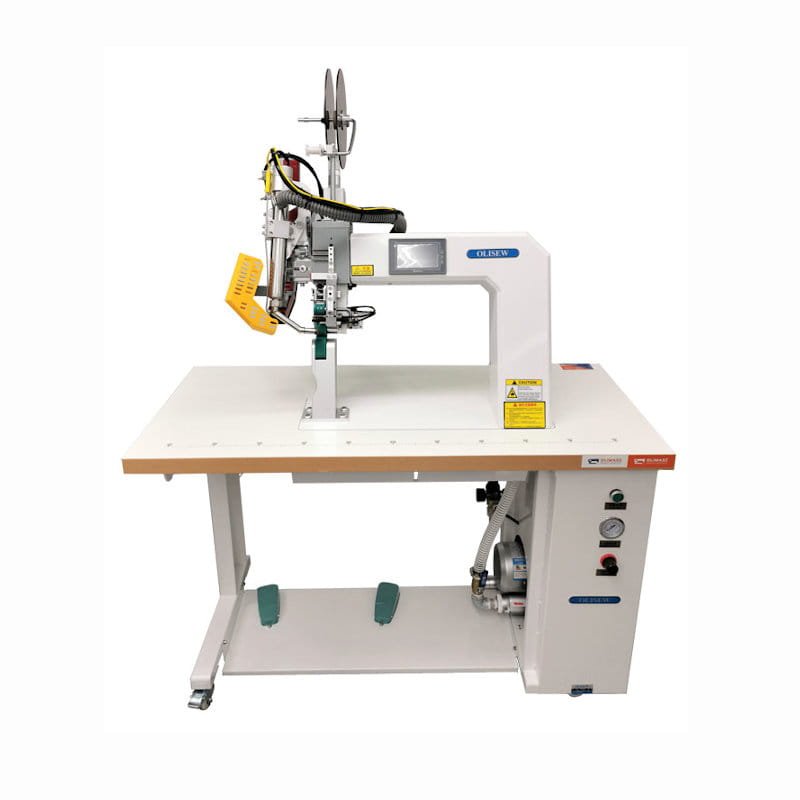

OLISEW OLD-7705 Hot air seam sealing machine
The device is based on microprocessor technology and a programmable and intelligent PLC logic controller. This enables digital settings and fine adjustment of parameters. The machine has functions such as: automatic temperature control; high stability; temperature fluctuations within ± 1C; an alarm signal informing about reaching the upper temperature limit prevents the cables from overheating. The functions of the synchronous drive of the upper and lower pressure roller chains, the automatic clearance compensation mechanism and the automatic micro-retraction reduce the risk of tape failure and ensure high product quality.
Thanks to the two-pedal control, the operation of the machine is comfortable, especially during long work. The machine uses a unique system of heating pipes; air is supplied by an independent fan, so no water or oil gets in. Automatic tape cutter, special tape feed mechanism and tape end finishing reduce material waste. In addition, the special design of the housing provides a large operating space, and the ultra-thin design of the lower column allows the tape to be glued on products of various sizes.
Specification:
- Power supply: 3Kw
- Voltage: 220V
- Compressed air 0.35 ~ 0.5MPa
- Speed 2-24m / min.
- Roll size: 60mm in diameter and 25mm in width
- The maximum temperature of the heater: 700C
- 90W engine power
