Lockstitch machine OLISEW OLD-1560N-HL25 with 2 needles, long arm with compound transport and servo Direct Drive (1)
product unavailable
Maszynami do szycia zajmujemy się od 2007 roku.
Jeśli potrzebujesz fachowej porady - Zadzwoń lub napisz, a ja doradzę Ci, co jest najlepsze dla Twoich potrzeb.
Description

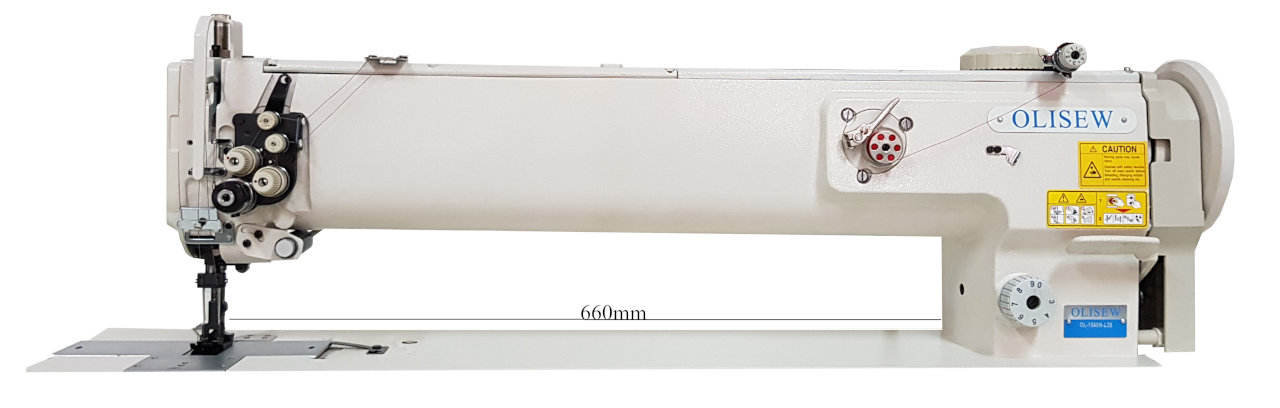

2 needles lockstitch machine OLISEW OLD-1560N-HL25 with compound transport . It is destined for heavy sewing as well as upholstery. Long arm with working area 660 mm long (from needle to body of the machine) and 150 mm high. Parameters: maximum sewing speed is 2000 spm, maximum length of stitch is 9 mm (in case of forward and backward sewing), height of foot lifting is 16 mm, needle system is 135x17, thickness of needle is between 125 and 180 Nm. The needles gauges are: 6; 8; 10; 14 (12 is standard one) . The machine is equipped with mechanism protecting needle and hooks against any damage. In comparison with standard hook, there is mounted the hook with 30% larger capacity what is useful in case of sewing with thick thread. There is also system of lubrication of hooks and several steps adjusting dial which enables regulating the height of internal walking foot according to the sewn material. The switch placed near needle bar turns on the function of bartacking while sewing. There is servo Direct Drive motor 750W equipped with function of needle positioning, pneumatic foot lifting and back bartacking.
For this model of machine JUKI parts are suitable.
We offer mounted, ready for work set that includes:
Head of the machine
Stand and top table
Motor
Drawer
Additional accessories
Manual instruction
Technical parameters:
| Type of stitch | flat lockstitch |
| Type of transport | compound |
| Direct-drive | no |
| Maximum length of stitch | 9 mm |
| Maximum speed | 2000 spm |
| Maximum foot lifting | 16 mm |
| Stroke of needle | 36 mm |
| Size of hook | enlarged |
| Type of lubrication | open |
| System of lubrication | automatic |
| Needle positioning | yes |
| Automatic thread cutting | no |
| Pneumatic foot lifting | yes |
| Pneumatic bartacking | yes |
| Automatic walking foot | no |
| Automatic wiper | no |
| Automatic nipper | no |
| Control panel | no |
| Needle system | DPx17 |
| Clearance under the arm | 660 mm |
| Energy-saving servo motor 750W | yes |
