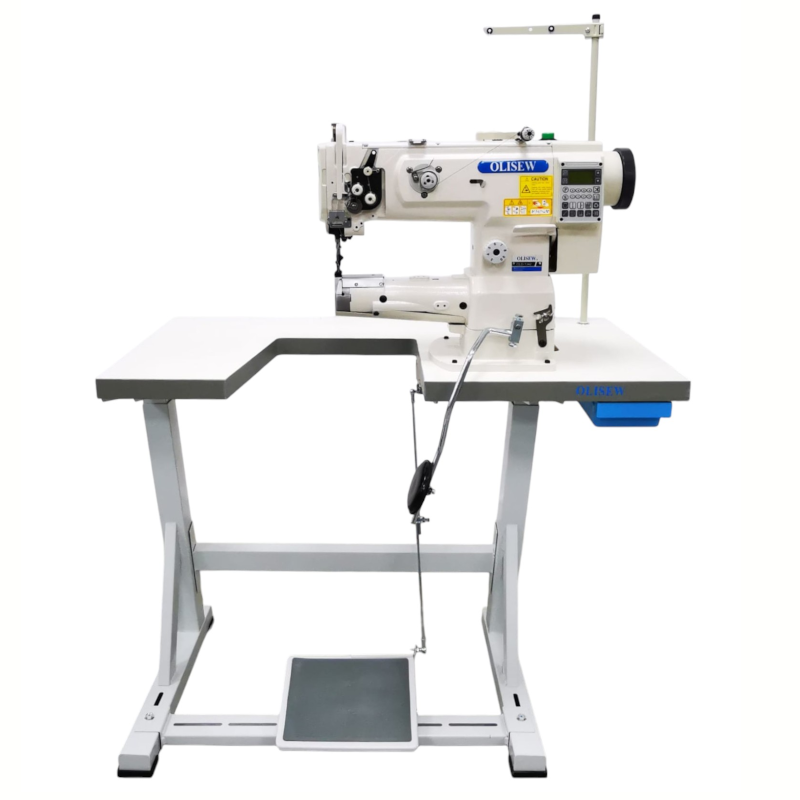

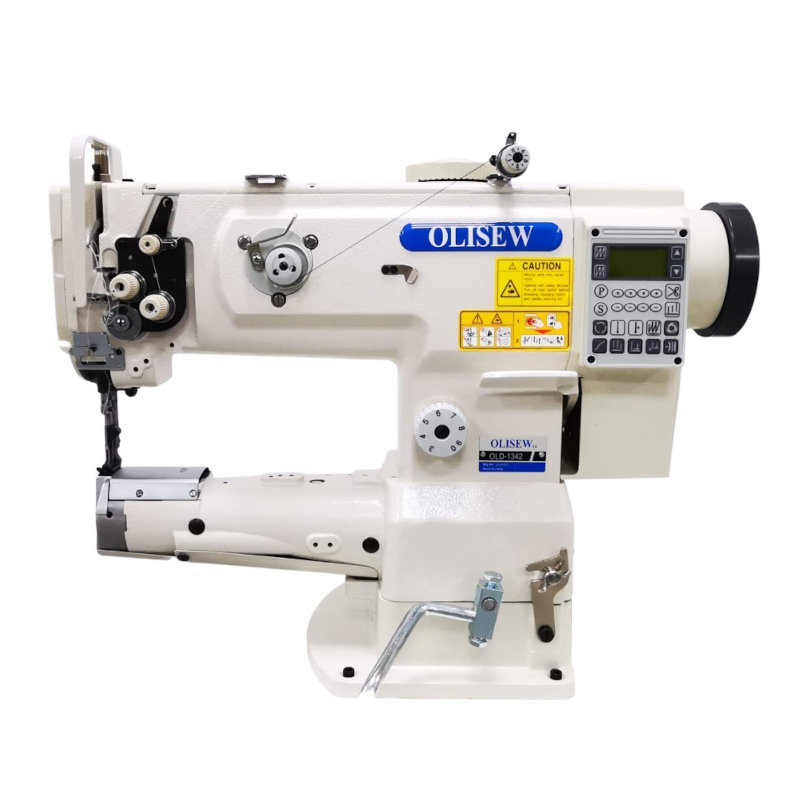

Cylindrical lockstitch machine OLISEW OL-1342 with compound transport
4.42857
Description
Cylindrical lockstitch machine with compound transport and high walking foot. The model is destined for medium and heavy sewing. Compound transport, large stroke of needle bar and foot lifting to 16 mm facilitate technical sewing. The hook is larger about 30% and it is especially useful in case of technical sewing with thick threads. The diameter of cylinder is 72 mm. There is energy-saving motor which saves even 70% of energy.
For this model of machine JUKI parts are suitable.
We offer assembled, ready to work set including:
head
motor
top table and stand
a drawer
additional accessories
operating manua
Technical parameters
| Type of stitch | Flat lockstitch |
| Type of transport | compound |
| Direct drive | no |
| Maximum length of stitch | 9 mm |
| Maximum speed | 2000 spm |
| Maximum foot lifting | 16 mm |
| Stroke of needle | 36 mm |
| Size of hook | enlarged |
| Lubrication | open |
| System of lubrication | manual |
| Automatic needle positioning | no |
| Automatic thread cutting | no |
| Automatic foot lifting | no |
| Automatic bartacking | no |
| Automatic walking foot | no |
| Automatic wiper | no |
| Automatic nipper | no |
| Control panel | no |
| System of needle | DPx17 |
| Thickness of thread | #10 |
| Clearance under arm | 260 mm |
| Built-in LED lamp | no |
| Controlled by smartphone | no |
